Available to

All Users

Accessing the Asset Side Drawer

Clicking on a displayed asset in the Asset List panel or Child Tag side drawer will open the Asset side drawer from the left side of the screen.

Structure of the Asset Side Drawer

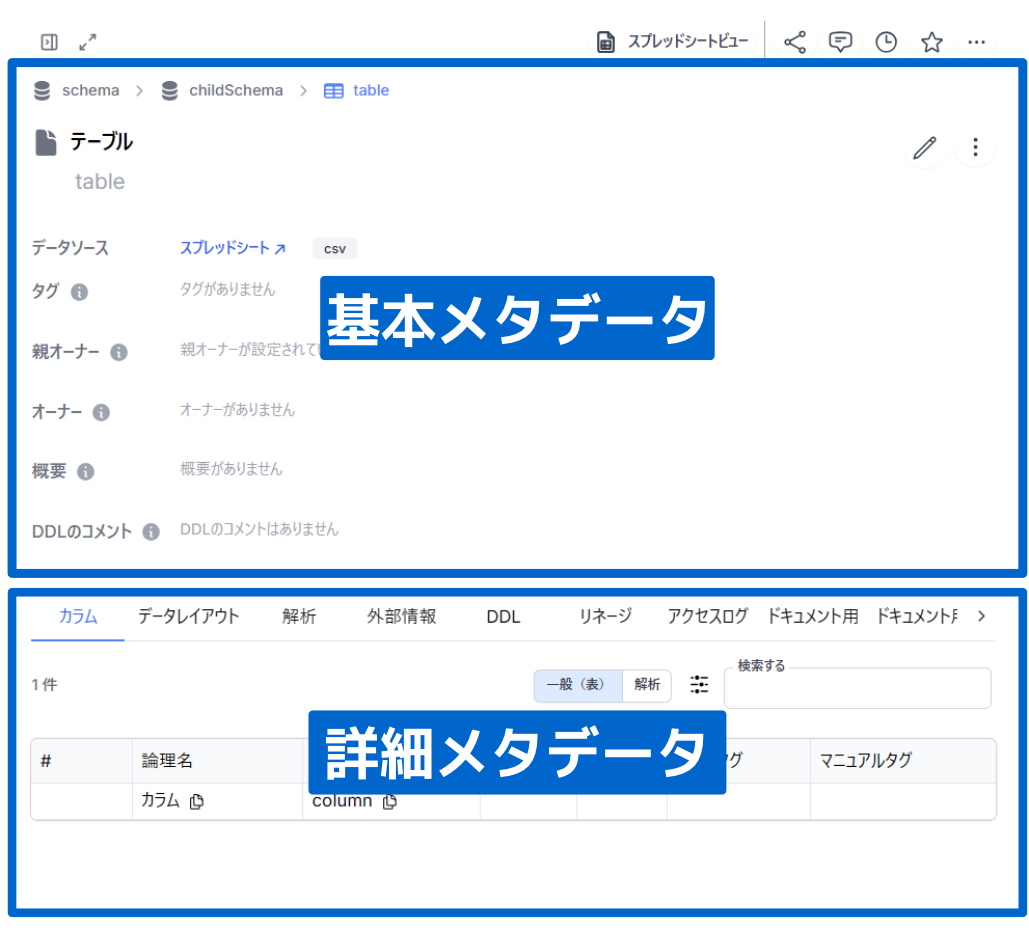

The Asset side drawer is broadly divided into two sections, upper and lower.

• The upper half of the side drawer displays the Basic Metadata. Most of the metadata shown here is common regardless of the asset's data type or asset type.
• The lower half of the side drawer displays the Detailed Metadata. Lineage, statistics, access logs, and property sets are displayed as tabs, but the information shown varies depending on the asset's data type and asset type. Also, information for which the administrator or operator has not granted access will not be displayed.

Basic Metadata

The following information is displayed as basic metadata from top to bottom in the side drawer.
When you hover over the items in the table below that are checked under [Comment], a Comment icon will appear. Clicking this icon will allow you to view or post comments. For details, see Adding Comments and Managing Threads.

Detailed Metadata

The following information is displayed as detailed metadata, shown as tabs from left to right in the side drawer. The items and their order vary depending on the asset's data type and asset type.
When you hover over the items in the table below that are checked under [Comment], a Comment icon will appear, allowing you to view or post comments. For details, see Adding Comments and Managing Threads.

For assets with a csv data source type, the information displayed in the tabs may also vary depending on the administrator's or operator's policies. For details, please contact your operator or administrator.

Tabs Displayed for DB Data Assets

Tabs Displayed for BI Data Assets

Operating the Asset Side Drawer

Icons Displayed on This Screen

This section explains operation icons on the screen that do not have text labels.

Icon	Label in Document	Available Operations
	Show Full Screen	Display the side drawer across the entire page
	Restore Original View	Return to the original view
	Close	Close the side drawer
	Share	Copy the asset URL
	Comment	Add and display comments and threads　*3
	Change History	Display asset change history
	Notification	Set notification to owner　｜　Remove notification to owner　*1
	Favorite	Add to favorites　｜　Remove from favorites
	Action Menu (Horizontal)	Display action menu (Request Access)
	External Link	Access external link　*2 If the custom property type is URL, access the external link
	Link	Display data source management screen　*3
	Copy	Copy (owner's email address, physical or logical name)
	Resize	Enlarge lineage drawing　｜　Reduce lineage drawing
	Reset Size	Reset size of lineage drawing
	Reset Asset Position	Reset asset position in lineage drawing
	Maximize Drawing	Maximize lineage drawing
	Asset Information	Display basic information for the selected asset in the lineage drawing
	Restore Drawing	Restore maximized lineage drawing to original size (The X icon is displayed at the top right of the maximized lineage drawing area)
	Calendar	Display calendar for date selection
	Preview	Display preview of attached files　｜　Close preview of attached files

* Icons for asset editing and deletion operations are omitted.

*1　Displayed only to the asset owner.
*2　Displayed only for assets of certain services where external link information is set.
*3　May not be displayed depending on the user's role.

Viewable Asset Information

Basic Metadata

Path

Displays the parent-child and ancestor relationships within the catalog leading to the asset, showing the physical name and an icon indicating the asset type.

• Clicking on another asset displayed in the path will switch the display to that asset.
• If you do not have access to an asset shown in the path, the asset name will display as unauthorized, and clicking will not change the display.

Asset Name

Displays the asset name. The display varies depending on the asset name display selection made in the asset list panel (Switching Asset Name Display).

• If Physical Name Priority (Default) is selected, the physical name (black) is displayed. If a logical name exists, it is also displayed (gray).
• If Logical Name Priority is selected, the logical name (black) and physical name (gray) are displayed. If there is no logical name, only the physical name (black) is displayed.
• If Logical Name Only is selected, only the logical name (black) is displayed. If there is no logical name, the physical name (black) is displayed.

A External Link icon may be displayed to the right of the asset name. Clicking this icon will display information about the metadata in the data source service corresponding to the asset. The display of the External Link icon depends on the asset's service and data source configuration.

Asset Status

If the asset is in one of the following states, that state will be displayed.

• When the asset is archived. Applies to archived assets of csv data sources.
• When the asset is in an original data lost state. Applies to assets in the original data lost state of agent data sources.

Data Source

Displays the asset's data source information.

• Shows the data source link the asset belongs to and the data source type (agent or csv).
• If you are an administrator or data steward, clicking the Link icon will display the data source management screen. (For users with other roles, the data source link is not displayed.)

Tags

Displays a list of tags assigned to the asset.

• Tags are displayed in the format Parent Tag Child Tag with the tag group color as the background color.
• Hovering over a tag displays its description. Clicking a tag opens the tag glossary screen in a new browser tab, with the relevant tag shown in the Parent Tag panel and Child Tag side drawer.

Parent Owner

If the parent asset has an owner registered, the parent asset's owner information (full name and email address) is displayed.

• An icon indicating the parent asset type is displayed to the right of the name, and hovering over the icon displays the physical name of the parent asset.
• Clicking the email address or the copy icon next to it copies the email address.

Owner

If the asset has an owner registered, the asset's owner information (full name and email address) is displayed.

• Clicking the email address or the copy icon next to it copies the email address.
• For the lowest asset in the path, this item displays "No Owner". (You cannot register an owner for the lowest asset in the path.)

Description

If a description is registered for the asset, it is displayed.

DDL Comment

For assets of agent data sources and data type DB Data, if a comment is registered in the definition statement (DDL) of the corresponding metadata (such as a table) in your organization's service (such as a data warehouse), that comment is displayed.

External Description

For assets of agent data sources and data type BI Data, if a description or comment is registered in the corresponding metadata (such as a dashboard) in your organization's business intelligence service, that information is displayed.

Detailed Metadata

The following detailed metadata and information managed by QDIC are displayed as tabs from left to right in the side drawer. The items and their order vary depending on the asset's data type and asset type.

Child Assets (DB)

For assets with data type DB Data, a list of child assets is displayed in table format. The tab label is the type of child asset. For example, if the asset displayed in the side drawer is a table, the corresponding tab label will be "Column".

• Clicking the physical or logical name of an asset in the table will switch the display to that asset.
• If you do not have access to the displayed asset, the asset name will be shown as unauthorized, and clicking will not change the display.

The following components are placed above the table:

• [General (Table)] button
  When selected, displays general information of child assets in the table. This is selected by default. For details, see Column Tab General (Table).
• [Analysis] button
  Displayed only if you have access to analysis information. When selected, displays statistical information in the table. For details, see Column Tab Analysis.
• Filter icon
  Clicking displays a popup to select which items to show in the table. By default, all items are selected.
• [Search] field
  Entering a keyword performs a fuzzy search on child assets. Search targets are the physical name, logical name, and description of child assets. The number of search results is displayed above the table. If no keyword is entered, the total number of child assets is displayed.

Child Assets (BI)

For assets with data type BI Data, a list of child assets is displayed in card format. Clicking a child asset switches the display to that asset.

Entering a keyword in the [Search] field performs a fuzzy search on child assets. Search targets are the physical name, logical name, and description of child assets. The number of search results is displayed above the list of child assets. If no keyword is entered, the total number of child assets is displayed.

If you do not have access to the displayed asset, the asset name will be shown as unauthorized, and clicking will not change the display.

External

For assets of agent data sources, information may be obtained from corresponding metadata (such as tables) in your organization's services and displayed as follows (target services are limited):

Whether the following external information is obtained from the service and registered in the catalog is determined by the administrator or environment operator.

• Sharing status displays the cross-reference relationships for databases with data sharing relationships between multiple Snowflake accounts, but only if both databases with the sharing relationship are configured to obtain their sharing relationships from the service.

  Example: If the asset (database) DB1 displayed in the side drawer is shared from another asset (database) SALES, the following is displayed. (DB1 is a shared database, and the actual database is SALES.)

  Example: If the asset (database) DB1 displayed in the side drawer is sharing to another asset (database) SALES, the following is displayed. (DB1 is the actual database, and SALES is the shared database.)

  In the above examples, if there is a corresponding asset for SALES in the catalog, clicking it will switch the display to the Asset side drawer for the SALES asset.

• External tags may not exist in the catalog.
• For Power BI services, external owner information may not exist in the catalog.

Data Layout

If the asset's service is Snowflake and both of the following apply, the data layout is displayed in table format. For the actual configuration in your organization, contact your operator or administrator.

• For agent data sources
• If the environment operator has set up the connector to obtain data layout

The displayed data layout is an analysis of sampled actual data from corresponding metadata (table or view) in your organization's service (data warehouse), formatted to mimic the data format. Note that it may differ from the actual data.

Analysis

If you do not have access to analysis information, no information is displayed in the tab.

For assets of agent data sources, the following information is obtained from the corresponding metadata (such as tables) in your organization's service (such as a data warehouse) and displayed. Clicking the Comment icon for each item allows you to view comments.

When the asset is a table

• Type. Displayed as Table.
• Record count. Displays the number of records in the table.
• Column count. Displays the number of columns in the table.

When the asset is a column

• Type. Displays the column's data type.
• Statistics. Displays statistics such as maximum, average, median, minimum, mode, null count, unique count, and standard deviation registered in the catalog. (If there are no statistics in the catalog, nothing is displayed.)
  • If the catalog's registered history of past statistics does not meet the window size setting for anomaly detection in data quality management, a spinner (radial circle) is displayed, and hovering over it shows Insufficient Data.

DDL

For assets of agent data sources and asset type table or column, the definition statement (DDL) obtained from the corresponding metadata (such as tables) in your organization's service (such as a data warehouse) is displayed. Clicking the Comment icon allows you to view comments.

Source

For assets of agent data sources and asset type sheet, the data source information (such as files) set in the corresponding report or sheet in your organization's business intelligence is displayed in table format.

Lineage

If you do not have access to lineage information, no information is displayed in the tab.

If upstream or downstream assets exist in the catalog and the connector has obtained the corresponding metadata (such as tables) from your organization's service (such as a data warehouse), those relationships are displayed. For details on operations, see Lineage Tab.

Lineage information display is a feature supported only for specific services, and the actual information displayed may also vary depending on administrator or operator policy. For details, please contact your operator or administrator.

Access Log

If you do not have access to the access log, no information is displayed in the tab.

Displays the users who accessed the asset most and the number of accesses to the asset. You can set the display period range. The Quarterly option is based on the calendar year.

You can customize the display period. Click the Calendar icon to select the period from the calendar or enter dates to set it.

Property Set

When an asset has custom properties applied, tabs with the property set names as labels are displayed.

• For example, if an asset has property sets "Custom P1" and "Custom P2" applied, the [Custom P1] and [Custom P2] tabs are displayed as asset details.
• The display order of property sets and properties is determined by the administrator or data steward.
• For details on operations, see Property Set Tab.

Special Asset Detail Tabs

Column Tab General (Table)

Displayed Items

*1　The display order of columns varies depending on the asset name display selection made in the asset list panel (Switching Asset Name Display).

• If Physical Name Priority (Default) is selected, the physical name column is displayed next to the logical name column.
• If Logical Name Priority is selected, the logical name column is displayed next to the physical name column.
• If Logical Name Only is selected, only the logical name column is displayed and the physical name column is not shown.

*2　For details on rule tags and manual tags, see Tags and Tag Glossary.

Column Tab Analysis

Displayed Items

*1　The asset name display varies depending on the asset name display selection made in the asset list panel (Switching Asset Name Display).

• If Physical Name Priority (Default) is selected, the column header is the physical name and the asset name is displayed as the physical name.
• If Logical Name Priority or Logical Name Only is selected, the column header is the logical name and the asset name is displayed as the logical name. If there is no logical name, the physical name is displayed as the asset name.

Notes

• If the connector has obtained statistics for the corresponding column calculated in your organization's service (such as a data warehouse), those statistics are displayed in table format.
• If there are no statistics in the catalog, ? is displayed, and hovering over it shows No Data.
• If the catalog's registered history of past statistics does not meet the window size setting for anomaly detection in data quality management, a spinner (radial circle) is displayed, and hovering over it shows Insufficient Data.
• Displaying statistics is a feature supported only for specific services, and the actual information displayed may also vary depending on administrator or data steward policy. For details, please contact your operator or administrator.

Lineage Tab

At the top left of the lineage drawing area, icons and toggle buttons for operating the drawing area are displayed, allowing the following operations:

• Resize icon
  Enlarge or reduce the drawing size.
• Reset Size icon
  Reset the drawing size after resizing.
• Reset Asset Position icon
  If you move assets by dragging in the lineage drawing area, this resets their positions to the initial layout.
• Maximize Drawing icon
  Maximize the lineage drawing area.
• Restore Drawing icon
  Restore the maximized lineage drawing area to its original size.
• [Show Columns] toggle button
  When enabled, displays columns for assets (tables).
• Asset Information icon
  Select an asset from the lineage display and click the Asset Information icon at the top right of the lineage drawing to display the following detailed information for that asset in a popup:
  • Physical name (and logical name if present)
  • Owner
  • Tags
  • Description

If you do not have access to an asset drawn in the lineage, No Permission is displayed.

Property Set Tab

The property set tab displays properties and their values created by the operator as custom properties. If a hint is set for a property, hovering over the tooltip icon will show the hint in a popup. Clicking the comment icon for each property allows you to view comments.

Notes on Operation

• User
  Clicking the email address copies it to the clipboard.
• Asset
  Clicking a displayed asset opens a new browser tab showing the catalog screen for the clicked asset.
• Free Input
  If the text is a URL, clicking the link opens the link in a new browser tab.
• URL
  If the text is a URL, clicking the External Link icon opens the link in a new browser tab.

• Attachment
  Clicking the displayed attachment name downloads the actual file attached to the asset.
  If the file format is previewable, clicking the Preview icon on the right end of the file toggles preview display.
  The maximum file size for attachments is 100MB per file.

Attachment File Formats

Other Operations

Request Access Permission

You can request access from the administrator or operator for information you do not have access to. When applying, you must also enter the reason for the request.

Targeted Information

• Basic Metadata
  If you do not have access to the path, next-level assets, or other assets displayed in the lineage drawing, you can request access to the basic metadata.
• Access Log (Detailed Metadata)
• Lineage (Detailed Metadata)
• Analysis (Detailed Metadata)
• Property Set (Detailed Metadata)
• Access to Actual Data
  If you do not have access to the actual data of corresponding metadata (such as tables) in your organization's service (such as a data warehouse), you can request access to the actual data. Note that this request is not for access to asset information in the catalog.

How to Request Access

Perform one of the following operations to display the "Request Access Permission" dialog box as a popup.

• Click the horizontal Action Menu (Horizontal) icon at the top right of the side drawer and select the [Request Access] menu.
• Click the [Request Access] button in the Lineage tab, Analysis tab, or Access Log tab.
• Click an asset labeled as No Permission or unauthurized.

Checking Requests

You can check your submitted requests from Inquiry Management. To access Inquiry Management, click the Navigation panel's Inquiry Management icon.

Adding Comments and Managing Threads

Clicking the Comment icon opens the Comment side drawer from the right side of the screen for the asset. For details, see Adding Comments and Managing Threads.

Display Spreadsheet View

Clicking the Spreadsheet View icon at the top right of the side drawer opens a new browser tab displaying the asset's metadata and custom properties in spreadsheet view. For details, see Operating the Spreadsheet View - Viewing Assets.

Copy Asset URL

Clicking the Share icon copies the URL of the currently displayed Asset side drawer. Opening the copied URL in a browser will display the Catalog screen, with the side drawer for the target asset and the related Asset List panel open. If you open the copied URL in a browser without being logged in to the workspace, you will be prompted to enter the workspace ID and log in to QDIC.

Display Change History

Clicking the Change History icon opens the side drawer displaying the asset's change history from the right side of the screen. The following information is displayed:

• Last Updated
• Updated By
  If updated by rule, displays Rule. If updated by connector, displays Workspace Name.
• Changes
  • 　Added information is displayed in green.　
  • 　Deleted information is displayed in red. If text is deleted, a strikethrough is shown.

Registering and Removing Favorites

Clicking the Favorite icon adds or removes the asset from your favorites. Assets added to favorites will be displayed under favorite assets on the Home screen or can be set as filter conditions.

Clicking the white Favorite icon adds the asset to favorites, changing the icon to a colored display. Clicking the colored icon removes the asset from your favorites, returning the Favorite icon to white.

Notification Control

If you are the owner of the asset, a Notification icon for controlling notifications of asset edit events will be displayed in the side drawer. (This is different from the Notification icon in the header panel.)

By default, asset owners receive a message in the notification center's alert section when the asset is edited, displayed with a colored Notification icon. If you do not need this notification, click the colored Notification icon to disable notifications.

Clicking the white Notification icon enables notifications.

Display Control

Show Full Screen

Clicking the Show Full Screen icon at the top left of the side drawer displays the side drawer across the entire browser window (the header panel and navigation panel are still displayed). Clicking the Restore Original View icon at the top left of the screen returns to the asset list panel and asset side drawer display.

Close the Side Drawer (Return to Catalog Screen)

Clicking the Close icon at the top left of the side drawer closes the side drawer and returns to the catalog screen (only the asset list is displayed).
